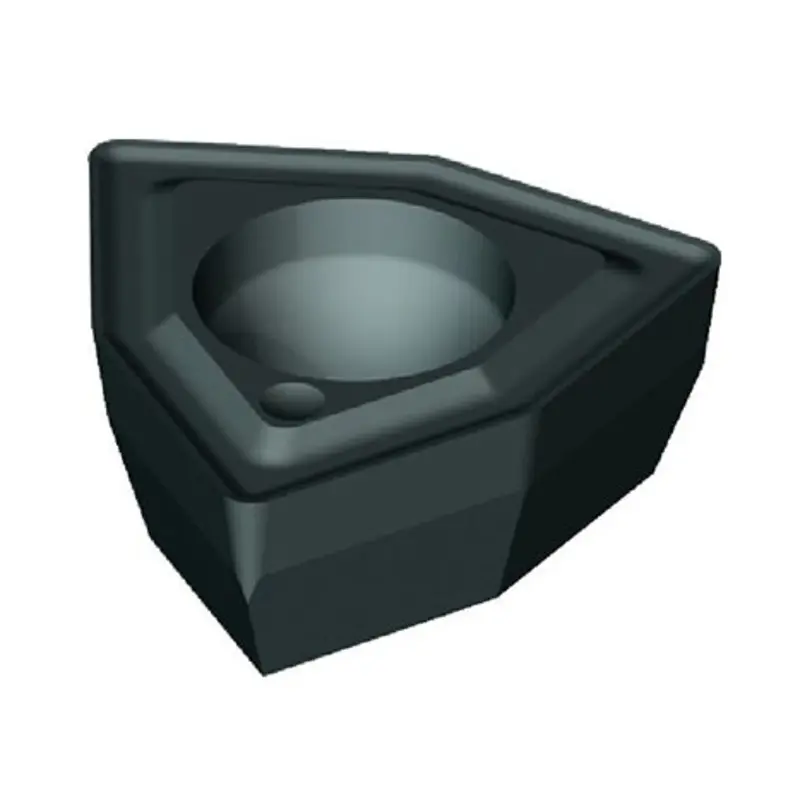

Kennametal DFT070408HP KC7140 DRILL-FIX Insert

DFT indexable drill insert is used in steel, cast iron, ductile iron, stainless steel and non-ferrous materials.

Brand :Kennametal

Insert Style :DFT

Insert Size :7.94 mm

Manufacturer Part Number :1804832

Material :Carbide

Additional Information :Warning: During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shieldi

Insert Thickness :4.75 mm

Features & Benefits : High positive chipbreaker geometry preferred on ductile and normal chipping materials

Insert Thickness (mm) :4.75

Diameter Range (mm) :41-48

Grade :KC7140

Inscribed Circle :04

ISO Number :DFT070408HP KC7140

Corner Radius :08

Chipbreaker :HP
